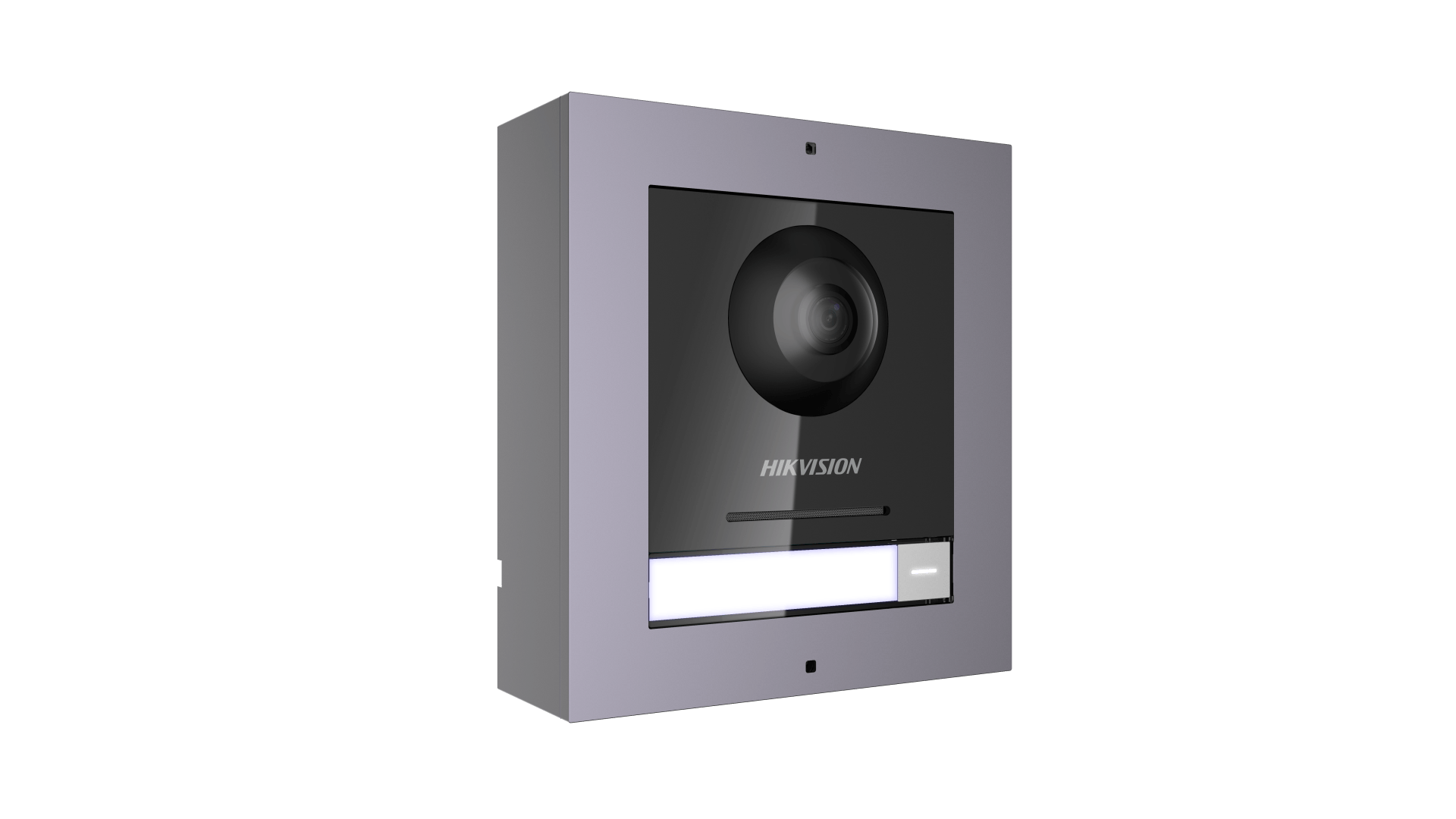

DS-KD8003-IME1/Surface - Intercom Camera Module
What we like about the DS-KD8003-IME1/Surface.
This module provides a great quality 2MP image so you can clearly see who is trying to get in. There is also a space for a name tag next to the intercom button which allows you to clearly label your residence.
KEY FEATURES
- Modular door station for villa
- DS-KD8003 with its surface mouting accessories
- IP65 (DS-KD8003+DS-KD-ACW1)
- 2 MP HD video intercom function
- Supports sub-modules access
- Easy to and extend
Downloads: DS-KD8003-IME1/Surface
Specifications: DS-KD8003-IME1/Surface
List of Services
-
System ParametersList Item 1
- Operation Method: Physical button
- Operation System: Embedded Linux operation system
- Processor: Embedded MCU Processor
-
Audio ParametersList Item 2
- Audio Input: Built-in omnidirectional microphone
- Audio Output: Built-in loudspeaker (More than 85 dB within 20 cm)
- Audio Compression Standard: G.711 U
- Audio Compression Rate: 64 Kbps
- Audio Quality: Noise suppression and echo cancellation
-
General
- Power Supply: 12 VDC/PoE (IEEE 802.3af)
- Power Consumption: ≤ 10 W
- Working Temperature: -40° C to +55° C(-40° F to 131° F)
- Working Humidity: 10% to 95%
- Weight: 554 g (with packaging) 375 g (without packaging)
- Dimensions: 98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73")
- Installation: surface mounting
-
Video Parameters
- Camera: Low illumination 2 MP HD IR camera
- Night Vision: Supported
- BLC: Supported
- Resolution: Main stream : 1920 × 1080 Sub stream : 720 × 480
- Anti-Flicker Frequency: 50 Hz, 60 Hz
- Video Compression Standard: H.264
- Field Of View: Horizontal: 180° Vertical: 96°
- Wide Dynamic Range: Supported
-
Network Parameters
- Ethernet: 10/100 Mbps self-adaptive Ethernet
- Network Protocol: TCP/IP, RSTP
-
Device Interfaces
- I/O Input: 4
- Module Connecting: 1
- Debug: 1
-
Alarm Parameters
- Tampering Alarm: 1
-
Light Supplement
- Light Supplement Mode: IR supplement
