DS-KD-DIS - Graphic Interface Module
What we like about the DS-KD-DIS.

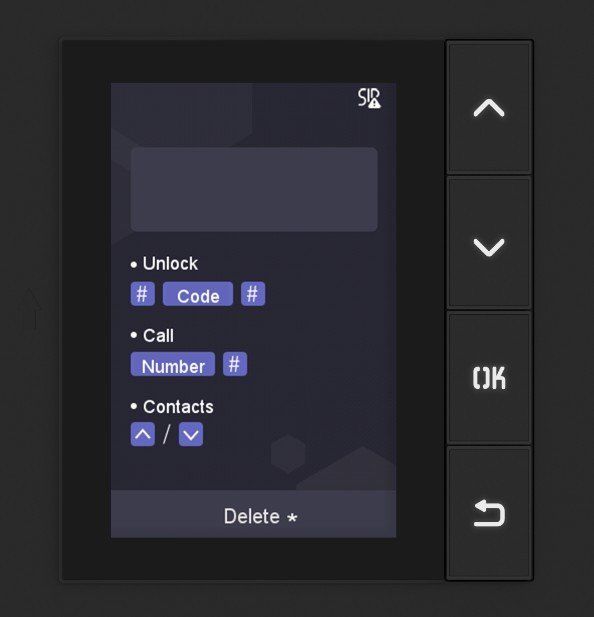

This unit is the top unit when you have multiple dwellings. The screen allows you to look through contacts, call the desired unit or enter a code to unlock the door or gate all on one module.
KEY FEATURES
- Modular door station Display module, needs mouting bracket
- 3.5 inch LCD screen, 4 buttons, backlight, IP65
- Dial number display, pin code unlock, contact list display
- Up to 2000 contacts can be added to the device
- Stores and searches contact list
- Multiple languages
Downloads: DS-KD-DIS
Specifications: DS-KD-DIS
List of Services
-
General
- Power Consumption: ≤ 3 W
- Working Temperature: -20° C to +60° C(-4° F to 140° F)
- Working Humidity: 10% to 95%
- Input Voltage: 12VDC( From the other module)
- Output Power: 12VDC( For the other module)
- IP Protection Level: IP65
- Memory: 64 MB
- Dimensions: 98.5 mm × 100 mm × 34.2 mm (3.87" × 3.95" × 1.33")
-
Display ParametersList Item 2
- Display Screen: 3.5-inch TFT LCD screen
- Display Resolution: 320 × 480p
- Operation Method: Physical buttons
-
Device Interfaces
- Button: 4( Up, Down, OK, Back)
-
System ParametersList Item 1
- Processor: Embedded MCU Processor
