DS-KD-IN - Indicator Module
What we like about the DS-KD-IN.

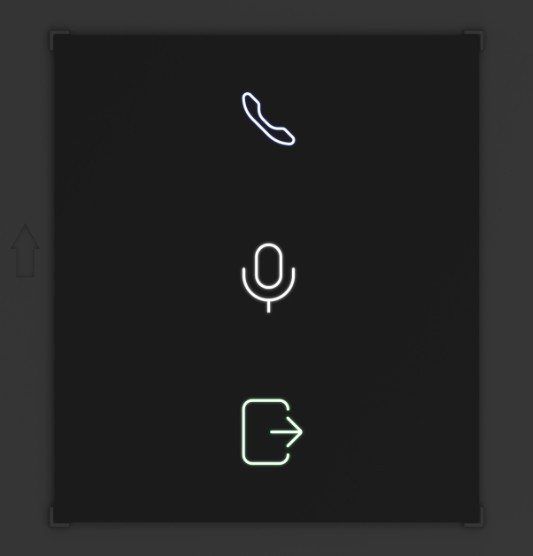

This module indicates the stages of the call on your intercom system. With icons for calling, speaking and unlocked door, the status of the call is clearly displayed the entire way through the call.
KEY FEATURES
- Modular door station Indicator module, needs mouting bracket, IP65, Backlight
- Indicates the device status: Calling, opening door and two-way audio
- Easy to and extend
Downloads: DS-KD-IN
Specifications: DS-KD-IN
List of Services
-
General
- Power Supply: 12 VDC (powered by the other module)
- Power Consumption: ≤ 2 W
- Working Temperature: -40° C to +55° C(-40° F to 131° F)
- Working Humidity: 10% to 95%
- Output Power: 12 VDC (powered for the other module)
- Weight: 326 g (with packaging) 165 g (without packaging)
- IP Protection Level: IP65
- Dimensions: 98.5 mm × 100 mm × 33.7 mm (3.87" × 3.95" × 1.33")
- Installation: Flush mounting, surface mounting
-
Device Interfaces
- Module Connecting: 2 (1 input, 1 output)
- Debug: 1
-
System ParametersList Item 1
- Processor: Embedded MCU Processor
