DS-KD-KP - Keypad Module
What we like about the DS-KD-KP.

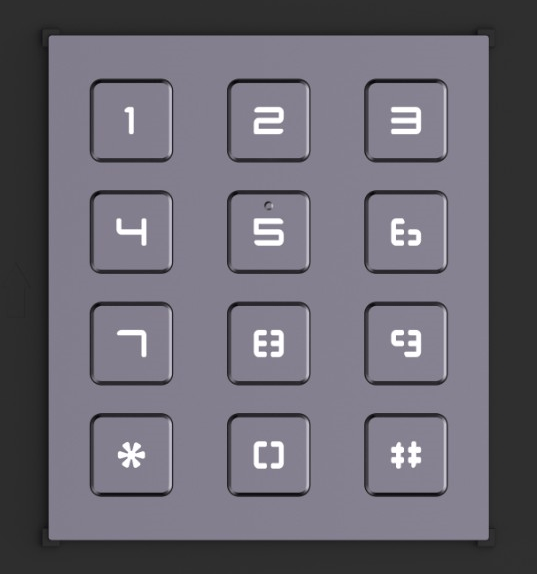

This keypad is a great module if you are looking to keep your site secure. The keypad connects to your door or gate and allows you access by inputting your code.
KEY FEATURES
- Modular door station Keypad module, needs mouting bracket
- Input pin code to open door, call indoor station
- Backlight compensation
- Easy to and extend
Downloads: DS-KD-KP
Specifications: DS-KD-KP
List of Services
-
General
- Power Consumption: ≤ 2 W
- Output Power: 12 VDC (powered for the other module)
- IP Protection Level: IP65, IK7
- Working Temperature: -40° C to +55° C(-40° F to 131° F)
- Working Humidity: 10% to 95%
- Dimensions: 98.5 mm × 100 mm × 34.2 mm (3.87" × 3.95" × 1.33")
- Weight: 529 g (with packaging) 265 g (without packaging)
-
Device Interfaces
- Module Connecting: 2 (1 input, 1 output)
- Debug: 1
-
System ParametersList Item 1
- Processor: Embedded MCU Processor
