DS-KD-KK - Name Tag Module
What we like about the DS-KD-KK.

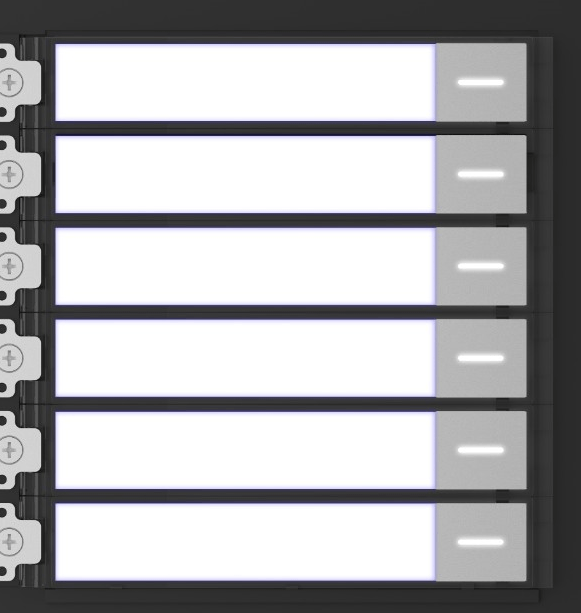

This nametag is a great, simple option for an intercom system for many dwellings. The 6 backlit call buttons and name tags make it easy to phone in to the desired unit.
KEY FEATURES
- Modular door station Nametag unit, needs mouting bracket
- 6 call buttons, including 4 button covers, IP65
- Dial the resident at one-touch
- Backlight compensation
- Easy and extend
Downloads: DS-KD-KK
Specifications: DS-KD-KK
List of Services
-
General
- Power Supply: Powered by DS-KD8003-IME1
- Power Consumption: ≤ 2 W
- Working Temperature: -40° C to +55° C(-40° F to 131° F)
- Working Humidity: 10% to 95%
- IP Protection Level: IP65
- Dimensions: 98.2 mm × 100.2 mm × 33.7 mm (3.87" × 3.95" × 1.33")
- Installation: Flush mounting, surface mounting
- Weight: 438 g (with packaging) 190 g (without packaging)
-
Device Interfaces
- Module Connecting: 2 (1 input, 1 output)
- Debug: 1
-
System ParametersList Item 1
- Processor: Embedded MCU Processor
