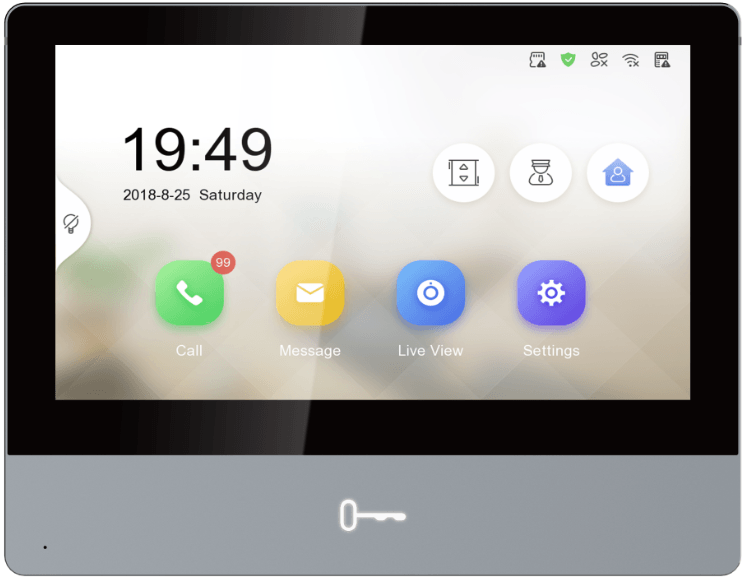

DS-KH8350 - 7" Premium Indoor Station
What we like about the DS-KH8350.
The Premium 7" Indoor station comes in an aluminium housing for a more sleek and sturdy design. The premium model also allows video message recording.
KEY FEATURES
- IP indoor station
- Reddot award 2017 winner, 7“ Touch-Screen Indoor Station
- Wi-Fi (for W version), standard PoE/ 12 VDC
- TF card, max 32G, for capture while video calling
- 8-ch alarm input , 2 alarm output, 1x485
- Remote unlocking via the client or the APP
- Views live videos of door stations and external cameras
Downloads: DS-KH8350
Specifications: DS-KH8350
List of Services
-
General
- Power Supply: IEEE802.3af, standard PoE 12 VDC/1 A
- Power Consumption: ≤ 7 W
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10% to 90%
- Dimension (L X W X D): 180 mm × 140 mm × 22.4 mm (7.09" × 5.51" × 0.88")
- Weight: 899 g (with packaging) 355 g (without packaging)
- Memory: 128 MB
- Certification: FCC, IC, CE, C-TICK, ROHS, REACH, WEEE,UL,CB, RCM
-
Audio ParametersList Item 2
- Audio Compression Rate: 64 Kbps
- Audio Compression Standard: G.711 U
- Audio Input: Built-in omnidirectional microphone
- Audio Output: Built-in loudspeaker
- Audio Quality: Noise suppression and echo cancellation
-
Display Parameters
- Display Resolution: 1024 × 600
- Display Screen: 7-inch colorful IPS LCD
-
System ParametersList Item 1
- Operation System: Embedded Linux operation system
-
Network Parameters
- Network Protocol: TCP/IP, SIP, RTSP
