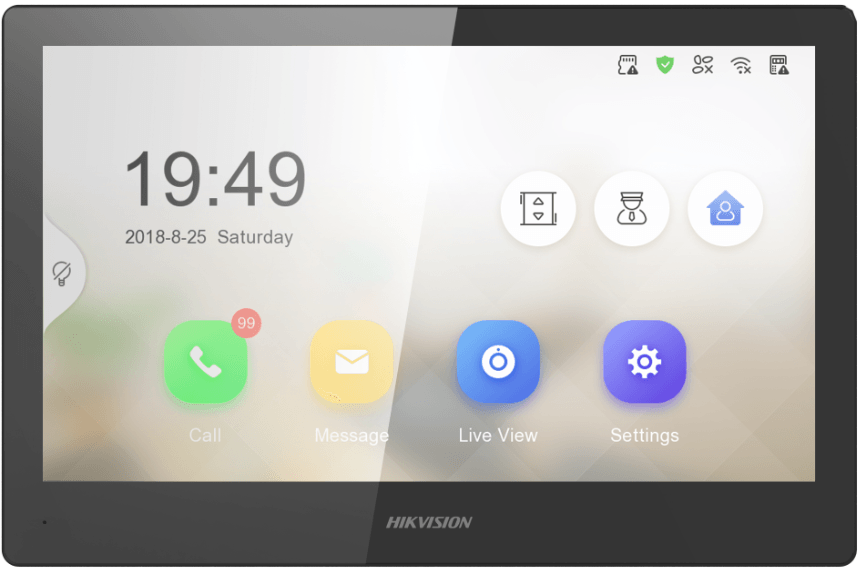

DS-KH8520 - 10" Indoor Station
What we like about the DS-KH8520.
The larger 10" Indoor station has the same great features with the screen just that bit larger.
KEY FEATURES
- IP indoor station
- 10“ Touch-Screen Indoor Station
- Wi-Fi, standard PoE/ 12 VDC
- TF card, max 32G, Stores messages and pictures
- 8-ch alarm input, 2 alarm output, 1x485
- Remote unlocking via the client or the APP
- Views live videos of door stations and linked cameras
Downloads: DS-KH8520
Specifications: DS-KH8520
List of Services
-
General
- Power Supply: IEEE802.3af, standard PoE 12 VDC/1 A
- Power Consumption; ≤ 6 W
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10% to 90%
- Weight: 1118 g (with packaging) 660 g (without packaging)
- Dimensions: 254 mm × 166 mm × 14.7 mm (10.0" × 6.5" × 0.58")
- Material: PC + ABS
-
Audio ParametersList Item 2
- Audio Input: Built-in omnidirectional microphone
- Audio Output: Built-in loudspeaker
- Audio Compression Standard: G.711 U
- Audio Compression Rate: 64 Kbps
- Audio Quality: Noise suppression and echo cancellation
-
Display Parameters
- Display Screen: 10.1-inch colorful TFT screen
- Display Resolution: 1024 × 600
- Operation Method: Capacitive touch screen
-
System ParametersList Item 1
- Operation System: Embedded Linux operation system
- Memory: 128 MB
- Flash: 32 MB
-
Network Parameters
- Network Protocol: TCP/IP, SIP, RTSP
- Network Interface: 1 RJ-45 10/100 Mbps self-adaptive
- Wired Network Interface: 10/100 Mbps self-adaptive
- Wireless Network Interface: Wi-Fi 802.11b/g/n
-
Device Interfaces
- Alarm Input: 8-ch alarm inputs
- TF Card: Max to 32 G, SD 2.0 or lower version
- RS-485: 1
-
Alarm Parameters
- Relay Output: 2
