Temperature Screening
The logo for hikvision is red and black on a white background.

Tripod Mount Thermal Camera Models - Best for Temporary Installations

Effective Up to 3 metres from Camera to Human
Mounting Height: 1.5 Metres
Elevation:  +/-20°

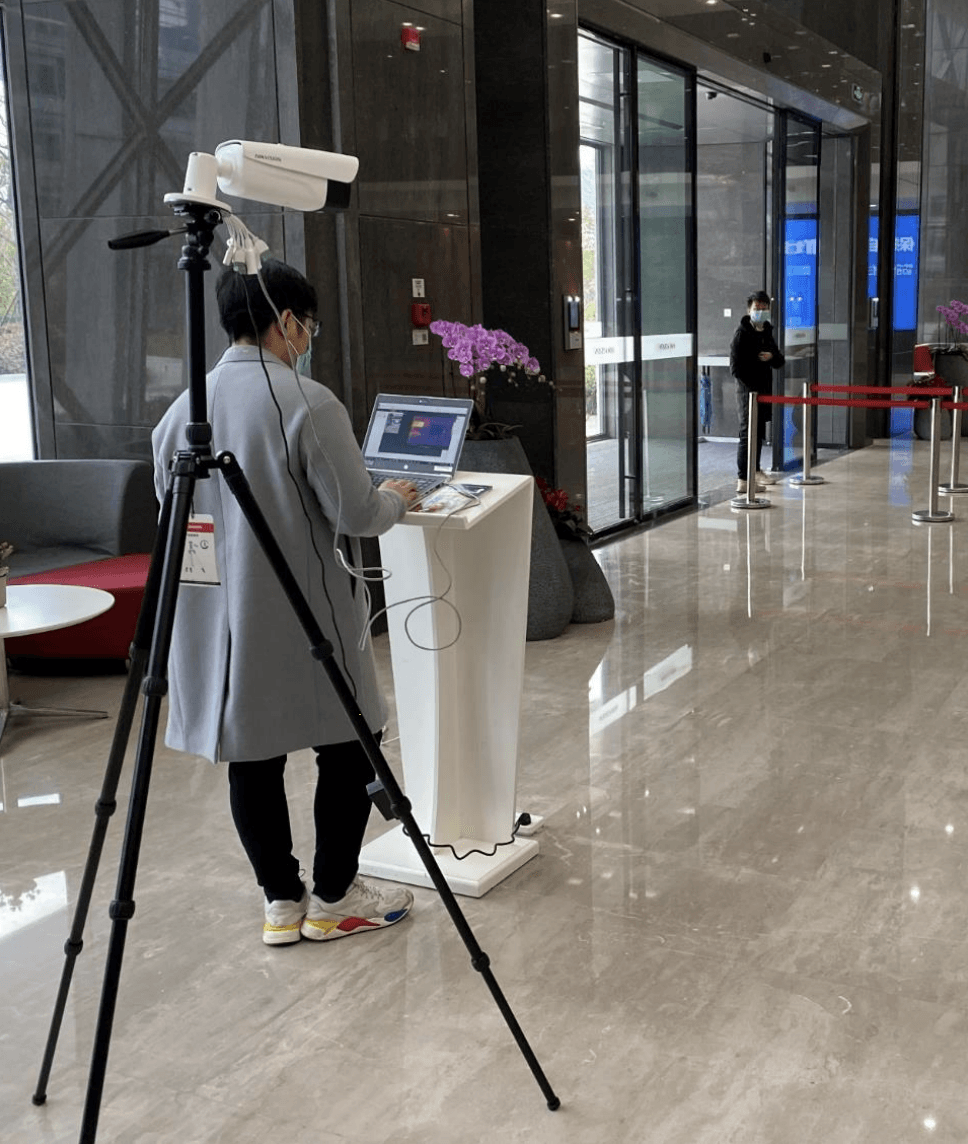

Temporary Fever Screening
Thermal Screening
If you have the need for a temporary fever screening solution, or have the need for a portable temperature screening solution, then these Thermal cameras from Hikvision will be a perfect fit for you.

Easily configured with a PC, these cameras can be deployed quickly, are light to manoeuvre and will provide an accurate means of detecting elevated temperatures during the COVID-19 Pandemic.

These cameras have an effective range of to 0.8m to 3m.

Temporary Tripod Mount (1.5m Height) :  OPTION 1

Temporary: OPTION 1

DS-2TD2617B-6/PA

Temperature Screening
Thermographic Bullet Camera

  • High sensitivity thermal module with 160 x 120 resolution
  • NETD is less than 40 mk (@25° C, F#=1.1)
  • Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
  • Support temperature screening
  • Support audio alarm
  • 1.5m - 3m Effective Range
Download PDF Full Specs

Temporary Tripod Mount (1.5m Height) :  OPTION 2

Temporary: OPTION 2

DS-2TD1217B-3/PA

Temperature Screening
Thermographic Turret Camera

  • High sensitivity thermal module with 160 x 120 resolution
  • NETD is less than 40 mk (@25° C, F#=1.1)
  • Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
  • Support temperature screening
  • Support audio alarm
  • 0.8m - 1.5m Effective Range
Download PDF Full Specs Watch our Review

Wall Mount Thermal Camera Model - Best for Permanent Installations

Effective Up to 7 metres from Camera to Human
Mounting Height: 2.5 Metres
Elevation: +/- 20°
Permanent Fever Screening
Thermal Screening
If you have the need for a permanent fever screening solution, then this Thermal camera from Hikvision will be a perfect fit for you.

It provides group screening with high efficiency and supports simultaneous temperature screening of multiple people, greatly enhancing efficiency

Easily configured and monitored with a PC, locally or remotely, this camera can be mounted in your lobby or reception area and will provide an accurate means of detecting elevated temperatures during the COVID-19 Pandemic.

This camera has an effective range of to 2.0m to 7m.

Permanent Installation (2.5m Height)

Permanent Installation

DS-2TD2637B-10/P

Temperature Screening
Thermographic Bullet Camera

  • High sensitivity thermal module with 384 x 288 resolution
  • NETD is less than 40 mk (@25° C, F#=1.0)
  • Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
  • Reliable temperature detection alarm
  • High quality optical module with 4 MP resolution
  • Bi-spectrum image fusion, picture-in-picture preview
  • 2.0 -7.0 m Effective Range
Spec Sheet Full Specs

Full Specifications

DS-2TD2617B-6/PA Full Specifications

DS-2TD2617B-6/PA

  • Image Sensor VOx Uncooled Focal Plane Arrays
  • Resolution 160×120
  • Pixel Interval 17μm
  • Response Waveband 8μm to 14μm
  • NETD Less than 40 mK (@25°C,F#=1.1)
  • Focal Length 6.2mm
  • IFOV 2.74 mrad
  • Aperture F1.1
  • Field Of View 25° × 18.7° (H × V)
  • Min. Focusing Distance 0.6 m

DS-2TD2617B-6/PA

  • Image Sensor 1/2.7" Progressive Scan CMOS
  • Resolution 2688×1520, 4MP
  • Min. Illumination Color: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)
  • Field Of View 39.42° × 22.14° (H × V)
  • Focal Length 8mm
  • Shutter Speed 1s to 1/100,000s
  • White Balance Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
  • Day & Night Mode IR cut filter with auto switch
  • WDR 120 dB

DS-2TD2617B-6/PA

  • Client iVMS-4200, Hik-Connect
  • Web Browser Plug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51
  • Alarm Input 2-ch inputs (0-5 VDC)
  • Alarm Output 2-ch relay outputs, alarm response actions configurable
  • Alarm Action SD recording/Relay output/Smart capture/FTP upload/Email linkage
  • Audio Input 1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
  • Audio Output Linear Level; Impedance: 600Ω
  • Communication Interface 1, RJ45 10M/100M Self-adaptive Ethernet interface. 1, RS-485 interface
  • On-Board Storage Built-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording

  • Bi-Spectrum Image Fusion Display the details of optical channel on thermal channel
  • Picture In Picture Display partial image of thermal channel on the full screen of optical channel

  • Temperature Range From 30°C to 45°C (86°F ~ 113°F)
  • Temperature Accuracy ± 0.5 °C

  • Main Stream Thermal: 25fps(1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical: 50Hz: 25fps (2688 × 1520), 25fps (1920 × 1080), 25fps (1280 × 720);Optical: 60Hz: 30fps (2688 × 1520), 30fps (1920 × 1080), 30fps (1280 × 720)
  • Sub Stream Thermal: 25fps(704 × 576, 352 × 288, 320 × 240);Optical: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144);Optical: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
  • Video Compression H.264 (Baseline/Main/High Profile) /MJPEG/H.265
  • Audio Compression G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
  • Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
  • Security Password protection, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP over HTTPS
  • Simultaneous Live View Up to 20

  • Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • User/Host Level Up to 32 users, 3 levels: Administrator, Operator, User
  • Power PoE (802.3af, class 3), 42.5 V to 57 V, 0.14 A to 0.22 A;DC 12V, 0.5A
  • Power Consumption PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 6.5 W 12 VDC ± 20%: 0.5 A, max. 6 W
  • Work Temperature/Humidity From 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less
  • Protection Level IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Dimension 358.3 mm × 113.5 mm × 115.2 mm (14.10" × 4.47" × 4.53")
  • Weight 1.76 kg (3.88 lb)

DS-2TD1217B-3/PA Full Specifications

DS-2TD1217B-3/PA

  • Image Sensor VOx Uncooled Focal Plane Arrays
  • Resolution 160×120
  • Pixel Interval 17μm
  • Response Waveband 8μm to 14μm
  • NETD Less than 40 mK (@25°C,F#=1.1)
  • Focal Length 3.1mm
  • IFOV 5.48 mrad
  • Aperture F1.1
  • Field Of View 50° × 37.2° (H × V)
  • Min. Focusing Distance 0.2 m

DS-2TD1217B-3/PA

  • Image Sensor 1/2.7" Progressive Scan CMOS
  • Resolution 2688×1520, 4MP
  • Min. Illumination Color: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)
  • Field Of View 84° × 44.8°(H × V)
  • Focal Length 4mm
  • Shutter Speed 1s to 1/100,000s
  • White Balance Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
  • Day & Night Mode IR cut filter with auto switch
  • WDR 120 dB

DS-2TD1217B-3/PA

  • Client iVMS-4200, Hik-Connect
  • Web Browser Plug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51
  • Alarm Input 2-ch inputs (0-5 VDC)
  • Alarm Output 2-ch relay outputs, alarm response actions configurable
  • Alarm Action SD recording/Relay output/Smart capture/FTP upload/Email linkage
  • Audio Input 1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
  • Audio Output Linear Level; Impedance: 600Ω
  • Communication Interface 1, RJ45 10M/100M Self-adaptive Ethernet interface. 1, RS-485 interface
  • On-Board Storage Built-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording

  • Bi-Spectrum Image Fusion Display the details of optical channel on thermal channel
  • Picture In Picture Display partial image of thermal channel on the full screen of optical channel

  • Temperature Range From 30°C to 45°C (86°F ~ 113°F)
  • Temperature Accuracy ± 0.5 °C

  • Main Stream Thermal: 25fps(1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical: 50Hz: 25fps (2688 × 1520), 25fps (1920 × 1080), 25fps (1280 × 720);Optical: 60Hz: 30fps (2688 × 1520), 30fps (1920 × 1080), 30fps (1280 × 720)
  • Sub Stream Thermal: 25fps(704 × 576, 352 × 288, 320 × 240);Optical: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144);Optical: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
  • Video Compression H.264 (Baseline/Main/High Profile) /MJPEG/H.265
  • Audio Compression G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
  • Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
  • Security Password protection, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP over HTTPS
  • Simultaneous Live View Up to 20

  • Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • User/Host Level Up to 32 users, 3 levels: Administrator, Operator, User
  • Power PoE (802.3af, class 3), 42.5 V to 57 V, 0.14 A to 0.22 A;DC 12V, 0.5A
  • Power Consumption PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 6.5 W 12 VDC ± 20%: 0.5 A, max. 6 W
  • Work Temperature/Humidity From 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less
  • Protection Level IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Dimension 138.3 mm × 138.3 mm × 123.1 mm (5.45 " × 5.45" × 4.85 ")
  • Weight 940 g (2.07 lb)

DS-2TD2637B-10/P Full Specifications

DS-2TD2637B-10/P

  • Image Sensor VOx Uncooled Focal Plane Arrays
  • Resolution 384×288
  • Pixel Interval 17μm
  • Response Waveband 8μm to 14μm
  • NETD Less than 40 mK (@25°C,F#=1.0)
  • Focal Length 9.7mm
  • Focus Mode Athermalized
  • IFOV 1.75 mrad
  • Aperture F1.0
  • Field Of View 37.5° × 28.5° (H × V)
  • Min. Focusing Distance 1.2 m

DS-2TD2637B-10/P

  • Image Sensor 1/2.7" Progressive Scan CMOS
  • Resolution 2688×1520, 4MP
  • Min. Illumination Color: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)
  • Field Of View 84° × 44.8° (H × V)
  • Focal Length 4mm
  • Focus Mode Fixed
  • Shutter Speed 1s to 1/100,000s
  • White Balance Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
  • Day & Night Mode IR cut filter with auto switch
  • WDR 120 dB

DS-2TD2637B-10/P

  • Client iVMS-4200, Hik-Connect
  • Web Browser Plug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51
  • Alarm Input 2-ch inputs (0-5 VDC)
  • Alarm Output 2-ch relay outputs, alarm response actions configurable
  • Alarm Action SD recording/Relay output/Smart capture/FTP upload/Email linkage
  • Audio Input 1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
  • Audio Output Linear Level; Impedance: 600Ω
  • Communication Interface 1, RJ45 10M/100M Self-adaptive Ethernet interface. 1, RS-485 interface
  • On-Board Storage Built-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording

DS-2TD2637B-10/P

  • Bi-Spectrum Image Fusion Display the details of optical channel on thermal channel
  • Picture In Picture Display partial image of thermal channel on the full screen of optical channel

  • Temperature Measurement Support 3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line).
  • Temperature Range From 30°C to 45°C (86°F ~ 113°F)
  • Temperature Accuracy ± 0.5 °C

  • Main Stream Thermal: 50fps(1280 × 720, 704 × 576, 384 × 288, 352 × 288);Optical: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720);Optical: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
  • Sub Stream Thermal: 25fps(704 × 576, 352 × 288, 320 × 240);Optical: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144);Optical: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
  • Video Compression H.264 (Baseline/Main/High Profile) /MJPEG/H.265
  • Audio Compression G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
  • Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
  • Security Password protection, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP over HTTPS
  • Simultaneous Live View Up to 20

DS-2TD2637B-10/P

  • Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Wiper No
  • User/Host Level Up to 32 users, 3 levels: Administrator, Operator, User
  • Power 24 VAC ± 25%;12 VDC ± 25%;PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A
  • Power Consumption 18 VAC to 30 VAC: 0.38 A to 0.22 A, max. 9 W 9 VDC to 15 VDC: 0.63 A to 1.06 A, max. 9 W PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A, max. 9.5 W
  • Work Temperature/Humidity From 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less
  • Protection Level IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Dimension 376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")
  • Weight Approx. 1.82 kg (4.01 lb)
